Dashboard

Built-in web dashboard for visualizing LLM usage, costs, and performance metrics.

Table of contents

1. Overview
2. Integration
   1. Express (Recommended)
   2. Manual Integration (Non-Express)
   3. Next.js App Router
3. Configuration
   1. Authentication
4. Standalone Server
5. API Endpoints
   1. Example Query

---

Overview

The NodeLLM Monitor Dashboard is a production-ready UI that visualizes your LLM telemetry. Unlike other tools that require external services, this dashboard is embedded directly into your application as a middleware or route handler.

It provides:

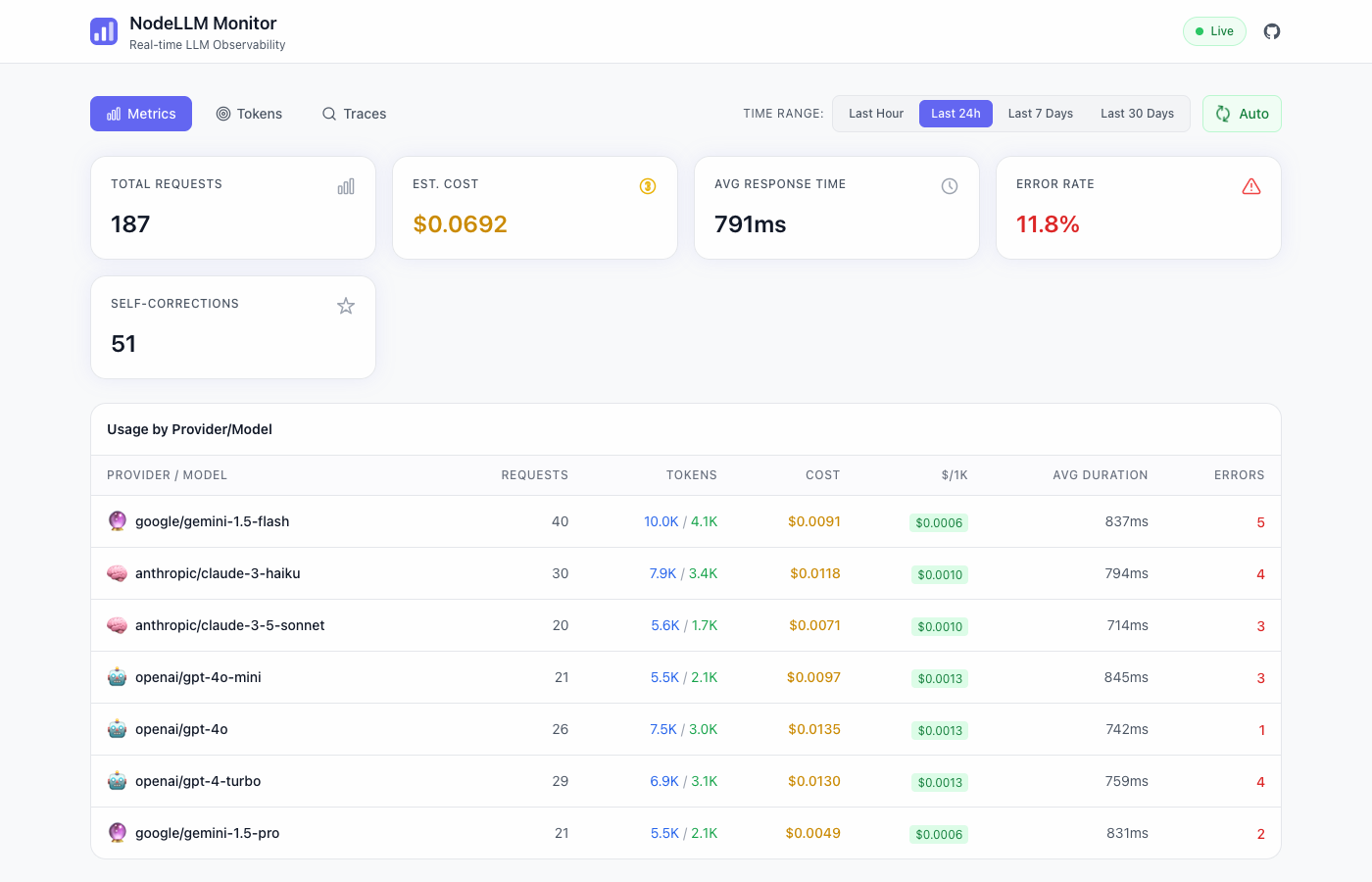

• Real-time Metrics: Costs, token usage, and latency.

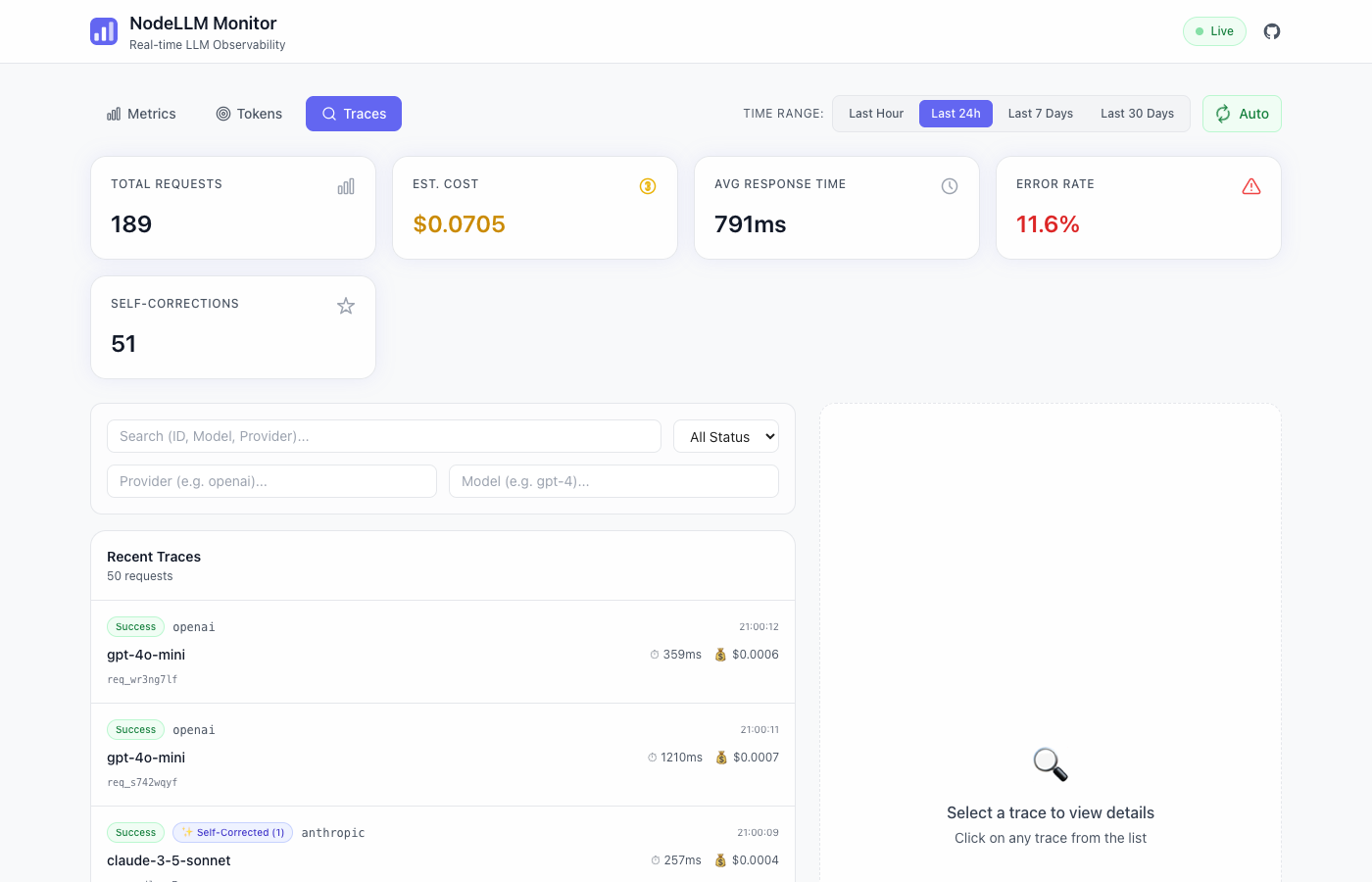

• Trace Explorer: Inspect full request/response payloads.
• Provider Breakdown: Compare models and providers.
• Time-Series Analysis: Visual trends over time.

---

Integration

Express (Recommended)

The easiest way to integrate the dashboard is using the api() method on your monitor instance:

import express from "express";
import { Monitor } from "@node-llm/monitor";

const app = express();
const monitor = Monitor.memory();

// Dashboard handles its own routing under basePath
app.use(monitor.api({ basePath: "/monitor" }));

app.listen(3333, () => {
  console.log("Dashboard at http://localhost:3333/monitor");
});

Manual Integration (Non-Express)

For standard Node.js HTTP servers or custom mount logic, use the MonitorDashboard class directly:

import { createServer } from "node:http";
import { MonitorDashboard, MemoryAdapter } from "@node-llm/monitor";

const store = new MemoryAdapter();
const dashboard = new MonitorDashboard(store, { basePath: "/monitor" });

const server = createServer(async (req, res) => {
  await dashboard.handleRequest(req, res);
});

server.listen(3333);

Next.js App Router

Use createMonitoringRouter to create a standard Web API route handler:

// app/api/monitor/[...path]/route.ts
import { PrismaClient } from "@prisma/client";
import { PrismaAdapter } from "@node-llm/monitor";
import { createMonitoringRouter } from "@node-llm/monitor/ui";

const prisma = new PrismaClient();
const adapter = new PrismaAdapter(prisma);

const { GET, POST } = createMonitoringRouter(adapter, {
  basePath: "/api/monitor",
});

export { GET, POST };

For the UI pages, you can either serve them via this API route (SPAs) or build a custom page that consumes these endpoints.

---

Configuration

The dashboard factories accept an options object:

interface MonitorDashboardOptions {
  /** Base path for mounting. Default: "/monitor" */
  basePath?: string;

  /** CORS configuration for API endpoints */
  cors?: boolean | string | string[];

  /** Polling interval (ms) for the UI. Default: 5000 */
  pollInterval?: number;
}

Authentication

Since the dashboard is just middleware, you can use standard authentication patterns:

import { basicAuth } from "./auth-middleware";

// Protect the dashboard route
app.use("/monitor", basicAuth);
app.use(createMonitorMiddleware(store, { basePath: "/monitor" }));

---

Standalone Server

If you prefer to run the dashboard as a separate service (e.g., to view production logs locally), you can create a simple server script:

// dashboard-server.ts
import { createServer } from "node:http";
import { FileAdapter } from "@node-llm/monitor";
import { MonitorDashboard } from "@node-llm/monitor/ui";

const adapter = new FileAdapter("./production-logs.json");
const dashboard = new MonitorDashboard(adapter, { basePath: "/" });

const server = createServer(async (req, res) => {
  await dashboard.handleRequest(req, res);
});

server.listen(3333, () => {
  console.log("Dashboard at http://localhost:3333");
});

See examples/demo/index.ts in the repository for a complete implementation.

---

API Endpoints

The dashboard backend exposes these endpoints (relative to your basePath):

Endpoint	Method	Description	Params
/api/stats	GET	Aggregate statistics	from (Date)
/api/metrics	GET	Time-series data for charts	from (Date)
/api/traces	GET	List of request traces	limit, offset
/api/events	GET	Detailed events for a request	requestId (Required)

Example Query

# Get traces
curl "http://localhost:3333/monitor/api/traces?limit=10"

# Get specific request details
curl "http://localhost:3333/monitor/api/events?requestId=req_12345"
